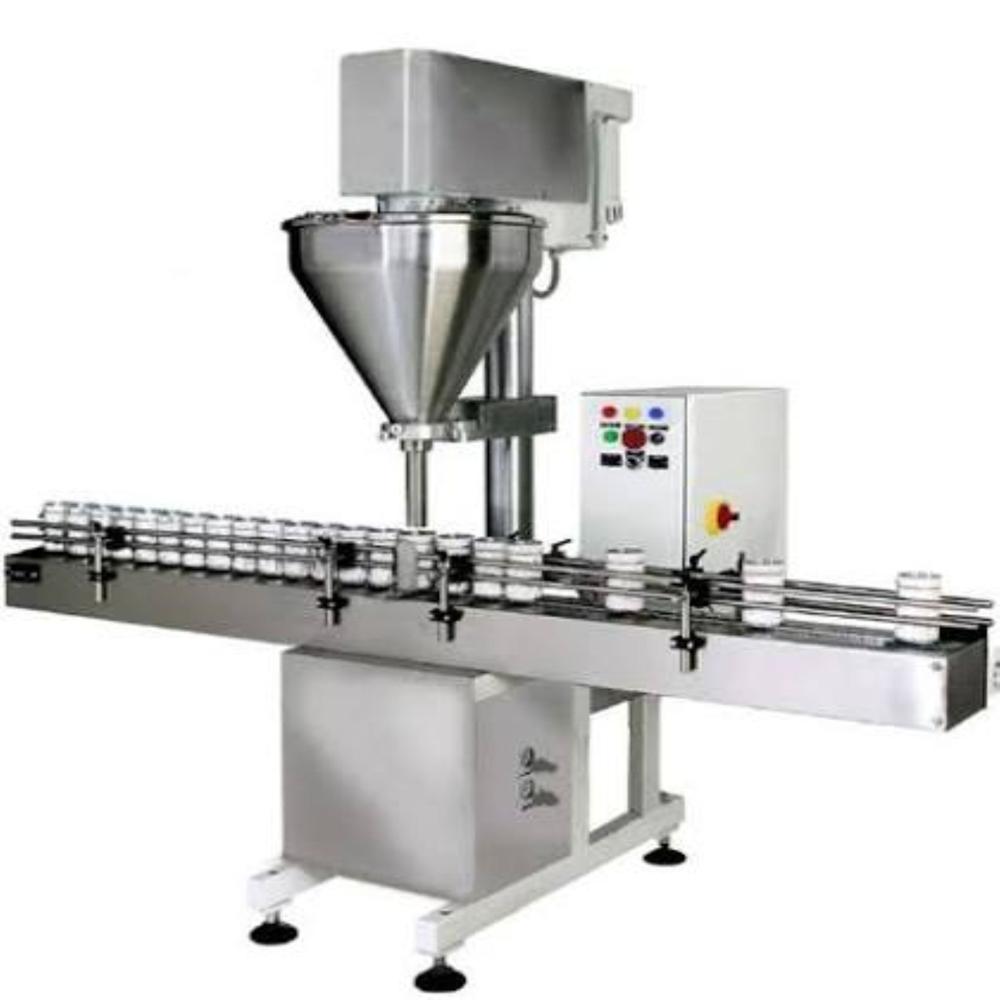

Auger Filler Machine

Auger Filler Machine Description

An Auger Filler Machine is a precision packaging system designed for filling dry, powdered, and fine granular products into bottles, jars, pouches, and containers. It works on the principle of an auger screw mechanism, where a rotating screw (auger) dispenses a controlled quantity of product, ensuring accurate and consistent filling. It is widely used in food, pharmaceutical, chemical, and agricultural industries.

Working Principle

The machine uses a rotating auger screw driven by a servo or stepper motor. Powder or granular material is stored in a hopper and fed into a measuring tube. As the auger rotates, it pushes a specific volume of product into the container. The system is controlled by PLC and HMI for precise adjustment of fill weight or volume.

Key Features

• High-precision filling for powders and granules
• Servo/stepper motor-driven auger mechanism
• PLC-based control system with touchscreen interface
• Stainless steel SS304/SS316 construction
• Dust-free filling with optional vacuum or hopper sealing
• Adjustable filling weight and speed
• Multiple filling modes (by weight or volume)
• Easy dismantling for cleaning and maintenance
• Suitable for free-flowing and non-free-flowing powders
• Optional integration with conveyor and capping systems

Applications

• Milk powder and infant formula
• Spices (turmeric, chili, pepper, masala powders)
• Flour and baking mixes
• Coffee powder and protein supplements
• Pharmaceutical powders and granules
• Chemical powders (detergents, additives, pigments)
• Agricultural products (fertilizers, pesticides powders)

Technical Specifications (Typical)

• Filling range: 1 g to 5000 g (customizable)
• Filling accuracy: 0.5% to 1%
• Hopper capacity: 1050 liters or more
• Production capacity: 5003000 fills per hour
• Power supply: 220V/380V, 50/60 Hz
• Control system: PLC with HMI touchscreen
• Material: SS304/SS316 stainless steel
• Drive system: Servo or stepper motor

Benefits

• Highly accurate and consistent dosing
• Reduced product wastage and dust emission
• Suitable for a wide range of powder products
• Easy operation and maintenance
• Hygienic and contamination-free filling
• Increases production efficiency and automation
