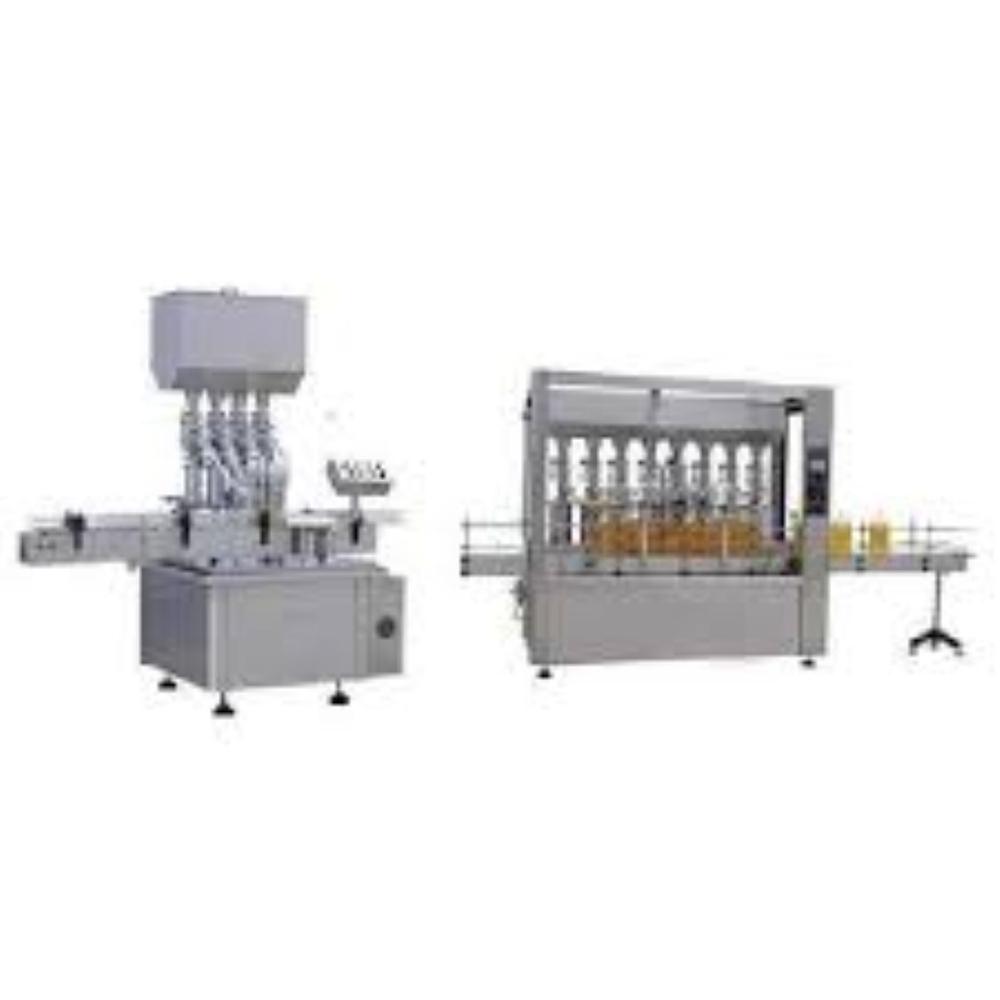

Honey Filling Machine

Name: Honey Filling Machine
Brand: WELL PACK PACKAGING SYSTEMS
Price: 350000.0 INR
Availability: InStock

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Honey Filling Machine Specification

Dimension (L*W*H)
2200 x 900 x 2000 mm (approx.)

Filling Material
Honey, viscous liquids

Air Consumption
0.5-0.7 MPa

Driven Type
Electric / Pneumatic

Grade
Food Grade Stainless Steel (SS304/SS316)

Voltage
220V/380V, 50/60Hz

Packaging Type
Bottles, Glass Jars, Plastic Containers

Motor Power
1.5 kW - 2.5 kW

Product Type
Automatic Honey Filling Machine

Usage & Applications
Filling honey into jars, bottles, or containers

Weight
350 - 700 kg (depending on model)

Capacity
1000 - 4000 bottles/hour (model dependent)

Core Components
PLC, Motor, Pump, Cylinder, Stainless Steel Body

Filling Range
50 ml - 5000 ml (Customizable)

Control System
PLC with HMI Touchscreen Interface

Conveyor Speed
Adjustable

Filling Heads
2 to 12 Heads (Configurable)

Accuracy
1%

Nozzle Type
Anti-drip, Diving Type Available

Operation Mode
Fully Automatic

Material of Construction
Stainless Steel SS304/SS316

Cleaning System
CIP (Clean-in-Place) Compatible

Noise Level
70 dB

Bottle Diameter Range
30-100 mm

Power Supply
3 Phase (Customization Available)

About Honey Filling Machine

Honey Filling Machine Description

A Honey Filling Machine is a specialized packaging system designed for the accurate, hygienic, and efficient filling of honey into bottles, jars, containers, and other packaging formats. Built to handle the high viscosity and sticky nature of honey, the machine ensures precise filling volumes, minimal product wastage, and consistent packaging quality. It is widely used in honey processing plants, food manufacturing facilities, and packaging industries.

Working Principle

The machine utilizes piston, servo-driven piston, or volumetric filling technology to dispense a predetermined quantity of honey into containers. Honey is fed from a storage hopper or tank to the filling nozzles, which accurately fill each container while preventing dripping and product loss. The filled containers are then conveyed to capping, sealing, and labeling stations for complete packaging.

Key Features

High-precision filling for viscous products like honey
Fully automatic operation with PLC and touchscreen controls
Servo-driven or pneumatic piston filling system
Food-grade SS304/SS316 stainless steel construction
Anti-drip filling nozzles for clean operation
Adjustable filling volume and filling speed
Heated hopper and pipelines available for improved product flow
Multiple filling heads for higher production capacity
Easy cleaning and maintenance
Hygienic design compliant with food industry standards

Applications

Natural honey packaging
Organic honey processing
Syrups and liquid sweeteners
Jams and similar viscous food products
Food processing and packaging industries

Technical Specifications (Typical)

Filling range: 50 ml to 5000 ml (customizable)
Filling accuracy: 0.5% to 1%
Filling heads: 2, 4, 6, 8, or more
Production capacity: 5005000 containers per hour
Power supply: 220V/380V, 50/60 Hz
Product contact parts: SS304/SS316 stainless steel
Control system: PLC with HMI touchscreen
Heating system: Optional for improved honey flow

Benefits

Accurate and consistent filling volumes
Reduced product wastage and spillage
Increased production efficiency
Hygienic and food-safe operation
Suitable for various container sizes and packaging formats
Reliable performance for continuous production

Sample Product Description

The Honey Filling Machine is a high-performance automatic filling solution designed for precise and hygienic packaging of honey and other viscous food products. Equipped with advanced PLC controls, servo-driven filling technology, and anti-drip nozzles, the machine ensures accurate filling, minimal wastage, and smooth operation. Manufactured from premium food-grade stainless steel, it meets stringent hygiene standards and delivers reliable performance for honey processors, food manufacturers, and packaging companies. Its customizable design and high production capacity make it an ideal choice for modern packaging operations.

Versatile Filling System

With configurable heads ranging from 2 to 12, this machine adapts to various production scales. The anti-drip nozzle and diving technology guarantee a clean, spillage-free filling experience while being tailored for honey and similar viscous substances. The adjustable conveyor and bottle support between 30-100 mm diameters make it highly flexible.

Advanced Control & Automation

The PLC-based control system, paired with an intuitive HMI touchscreen interface, ensures operators can easily manage, monitor, and adjust machine settings. This automation reduces errors and increases productivity, allowing hassle-free batch production and recipe pre-sets for different products.

Reliable, Hygienic Construction

Fabricated from food-grade SS304/SS316 stainless steel, the honey filling machine offers outstanding corrosion resistance and easy sanitation. The CIP-compatible cleaning system ensures quick maintenance and consistent hygiene-crucial for food-grade environments.

FAQ's of Honey Filling Machine:

Q: How does the Honey Filling Machine maintain filling accuracy for viscous liquids like honey?

A: The machine employs a precision control system with electric or pneumatic drives and anti-drip nozzles, ensuring filling accuracy within 1%. Its advanced PLC and sensor feedback mechanisms optimize performance and minimize waste, regardless of honey's viscosity.

Q: What is the cleaning process for the Honey Filling Machine, and how often should it be done?

A: Cleaning is straightforward due to CIP (Clean-in-Place) compatibility. Operators can initiate automated cleaning cycles via the HMI touchscreen, ensuring all internal components are hygienically flushed without disassembly. The frequency depends on production volume, but regular cleaning after each production run is recommended.

Q: When is it advisable to use the diving nozzle feature?

A: The diving nozzle is particularly beneficial when filling containers with viscous or foaming products like honey. It submerges into the container during filling, reducing air bubbles and preventing splashing, which helps achieve a precise, neat fill.

Q: Where can this honey filling machine be installed and what utilities are required?

A: This machine is suitable for food processing plants, honey producers, and packaging facilities. It requires a 3-phase electric power supply (customizable voltage), compressed air (0.5-0.7 MPa), and sufficient workspace (approx. 2200 900 2000 mm).

Q: What types and sizes of containers can the machine handle?

A: The honey filling machine accommodates bottles, glass jars, and plastic containers with diameters from 30 to 100 mm, and filling volumes between 50 ml and 5000 ml. These parameters are easily adjustable via the touchscreen interface.

Q: How does automation improve the honey filling process?

A: Automation through PLC and HMI reduces manual intervention, ensures consistent fill levels, minimizes operator error, and enables rapid production changes. This results in higher throughput, reliable quality, and simplified operation.

Q: What are the main benefits for businesses using this filling machine?

A: Businesses benefit from enhanced production efficiency, hygienic filling, quick changeovers, and precise volume control. The machine supports multiple packaging types and sizes, requires minimal manual labor, and contributes to consistent product quality.
